CBS-2231 NG Extractor Single Station Coffee Brewer
CBS-2231 NG Extractor Single Station Coffee Brewer
CBS-2231 NG Extractor Single Station Coffee Brewer
CBS-2231 NG Extractor Single Station Coffee Brewer
CBS-2231 NG Extractor Single Station Coffee Brewer

CBS-2231 NG Extractor Single Station Coffee Brewer

By FETCO
Financing Options available

Up to 150 coffees/day

Available in

Works With

1 Gallon (3.8L) Pump Lever Airpot

1 Gallon (3.8L) Pump Lever Airpot

FETCO

Request Demo Get a Quote
Personalized assistance from Espresso Experts

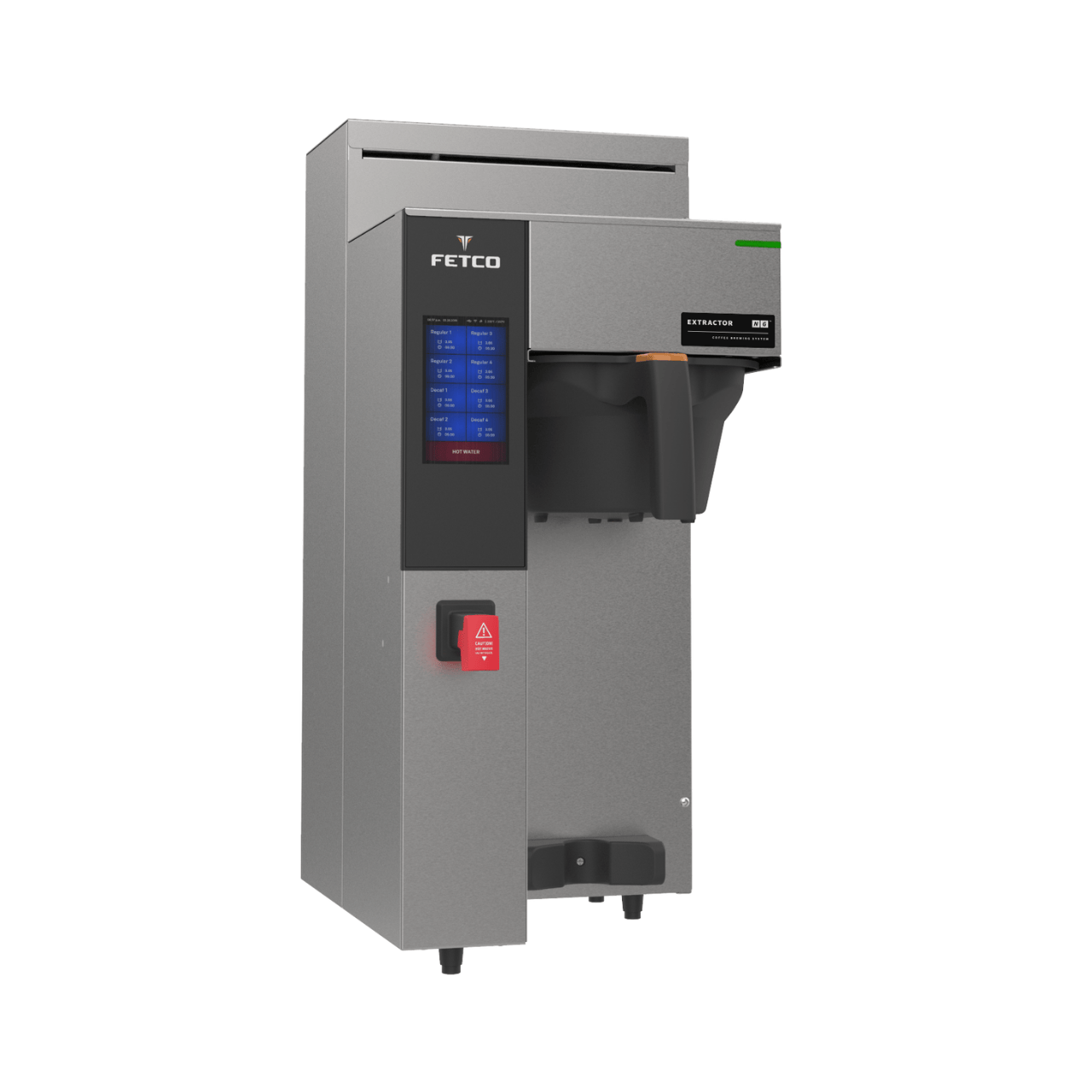

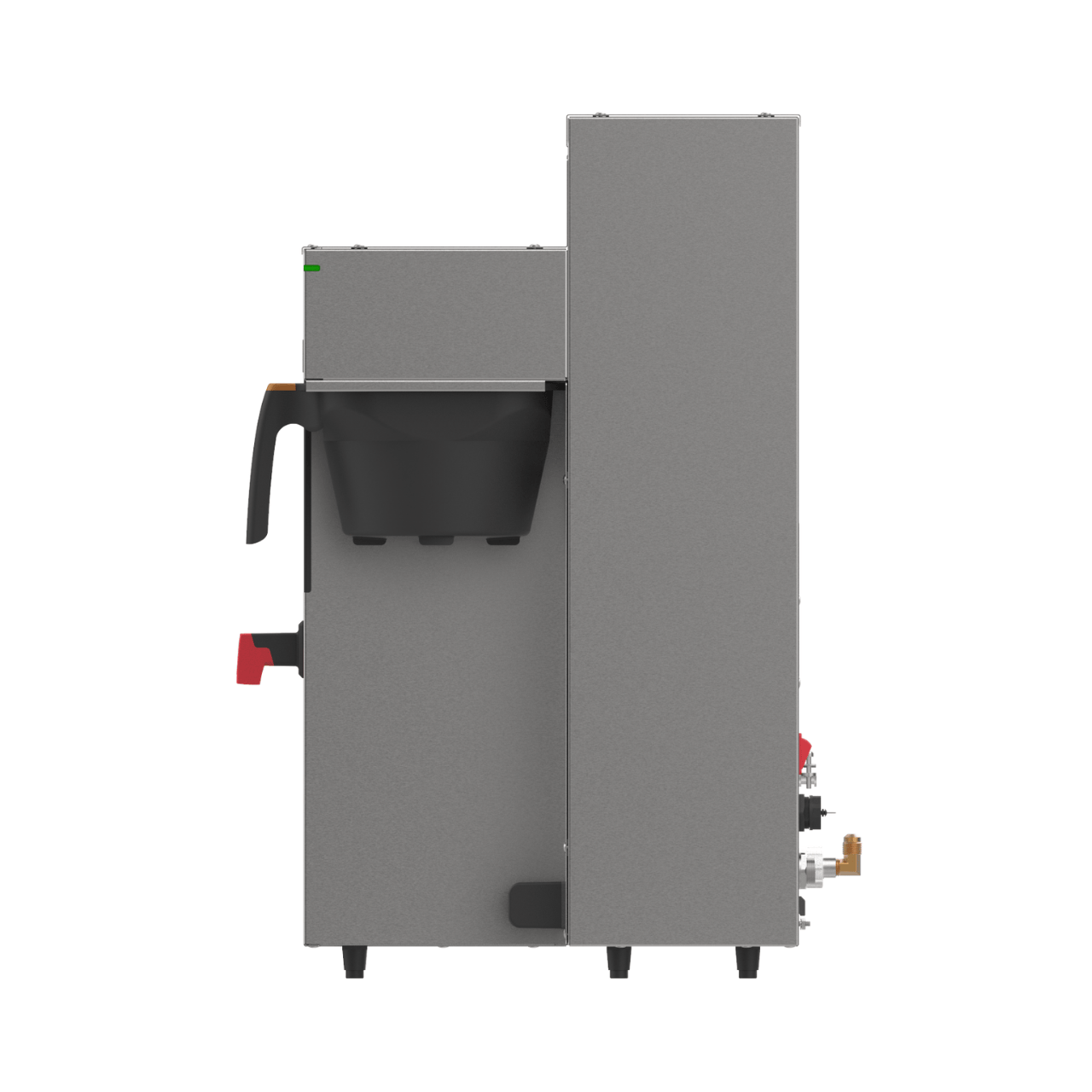

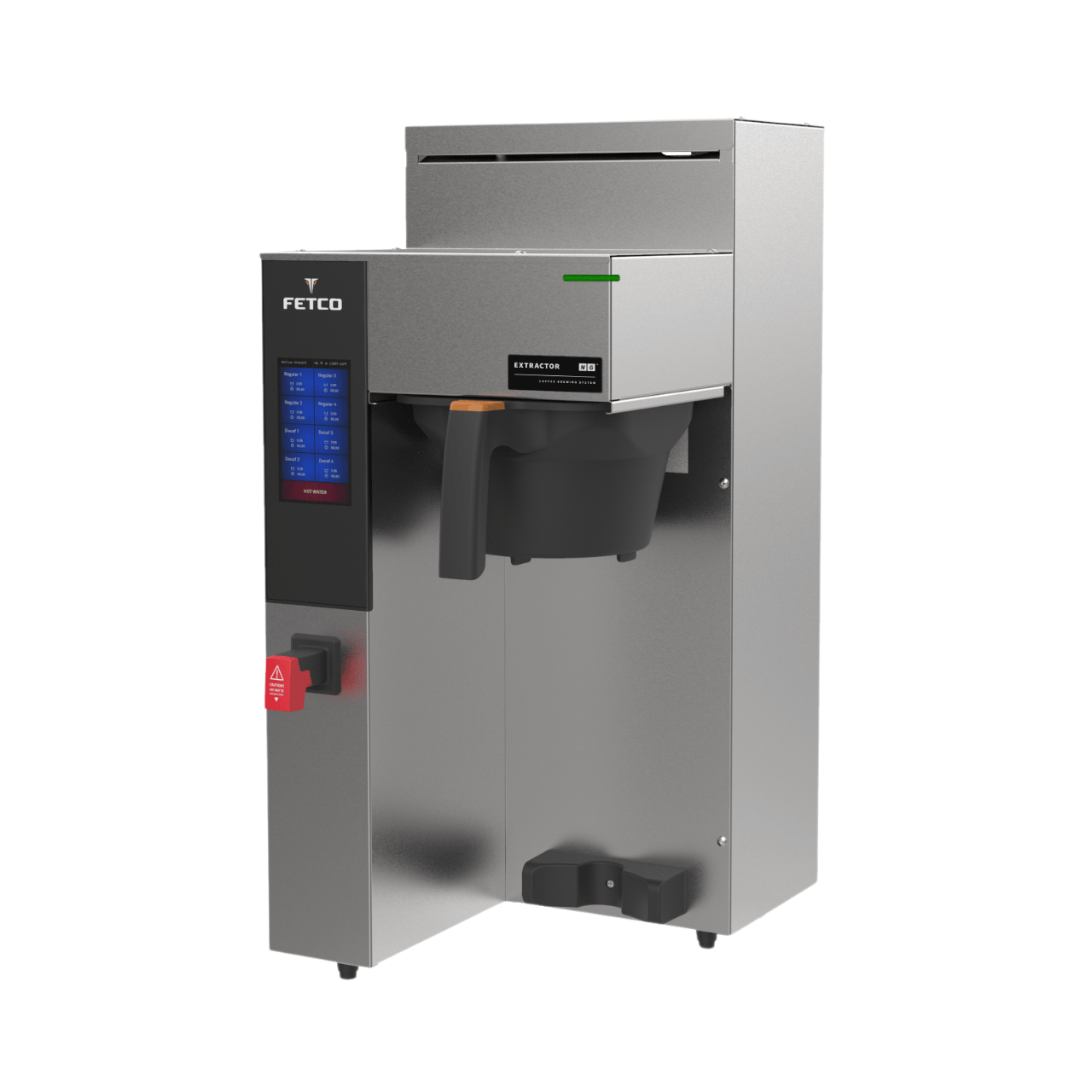

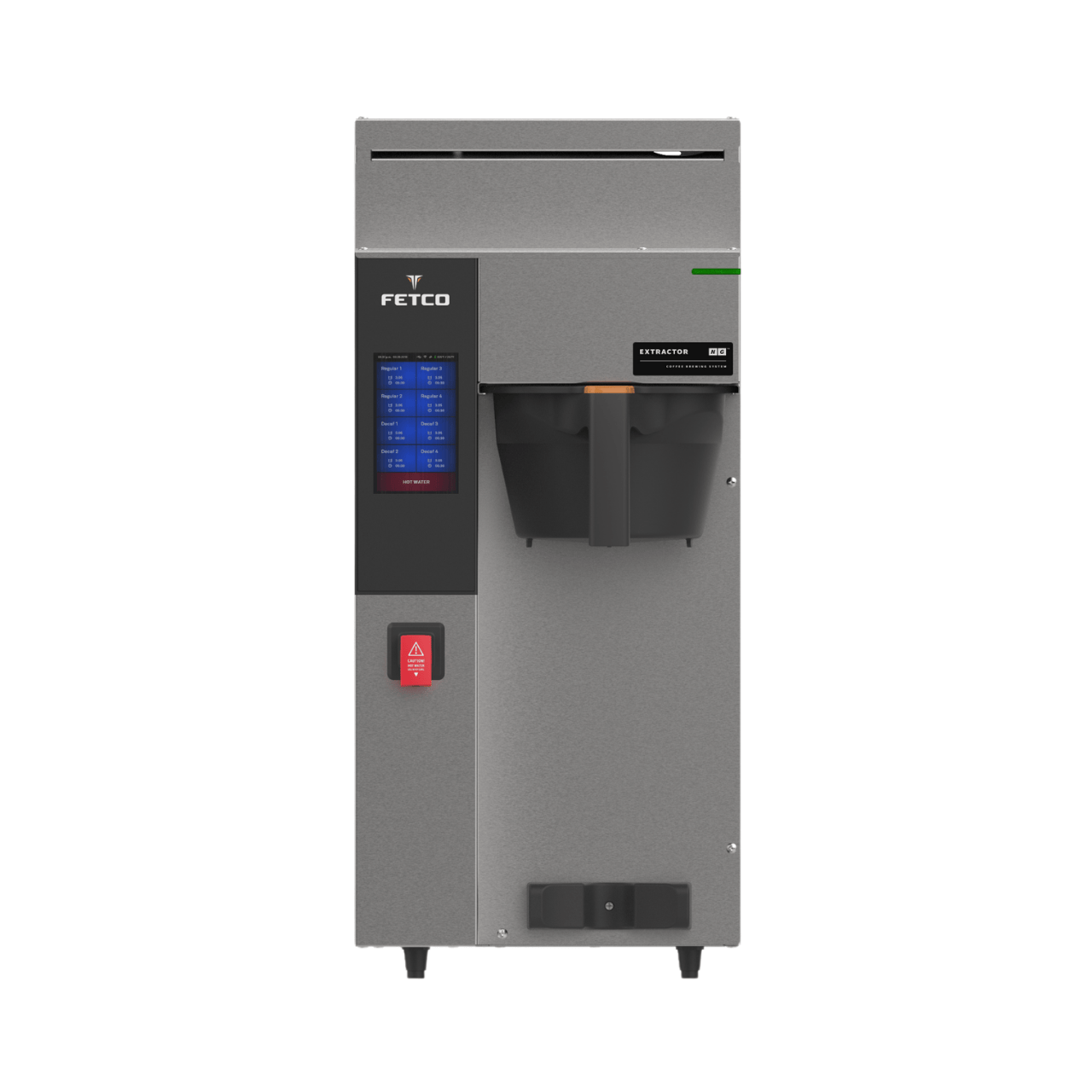

The CBS-2231 NG Extractor Single Station Coffee Brewer is designed to maximize user-experience in low to medium-volume speciality coffee shops or for office coffee service. Equipped with a capacitive LED touch screen display, LED brewing status bar, brew basket lock, and patented cascading spray dome design, this quality brewer provides a user-friendly interface while ensuring consistency in batch brewing.

Recommended for

Low to medium-volume speciality coffee shops and cafes with 1 or 2 types of coffees on service or for office coffee service including cafeterias.

  • Capacitive Touchscreen Display Allows the user to easily set brew times and program recipes at the tap of a finger.
  • LED Brew Status Indicator Immediatly identify brewing status (ready to use, brewing, almost done, or ready to serve) at a glance, based on the colour of the LED Status Bar.
  • Brew Basket Sensors and Locks Brew baskets lock in place throughout the brewing process for added safety and quality control.
  • Cascading Spray Dome Promotes consistent, maximum extraction by evenly saturating the coffee bed. Additionally, its lime resistent design slows scale buildup, requiring fewer service calls.
  • Eco Mode Tank temperatures are automatically lowered during periods of non-operation, reducing electricty consumption.

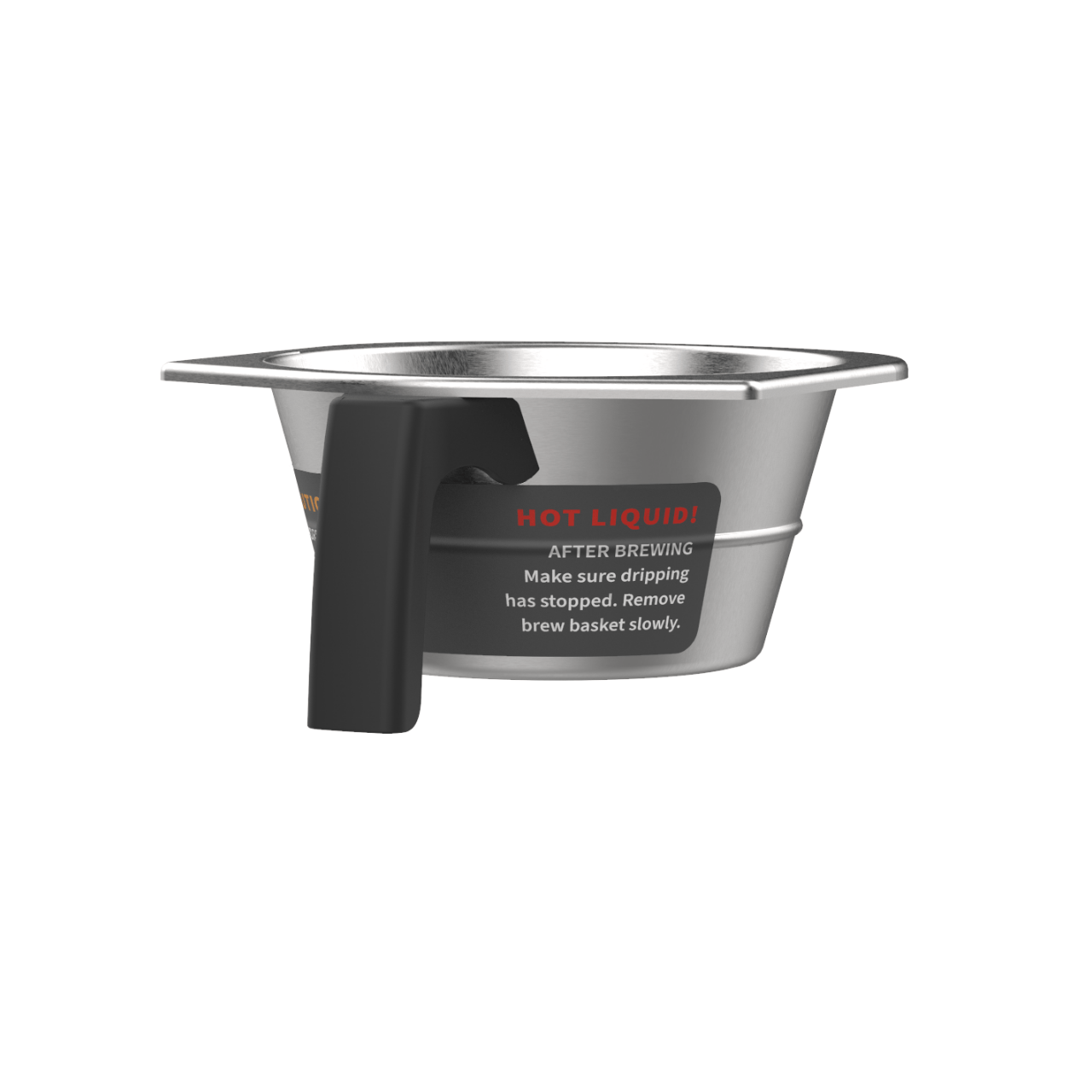

  • Stainless Steel Brew Basket Deep bed depth and superb thermal insulation for better extraction
  • Laser Welded Tank Ensures durability and leak-resistance.
  • Manual Hot Water Faucet Hot water readily available at an instant.
  • USB Plug-in Feature Added simplicity for firmware updates and data transfers.
  • 4 brew settings
  • Programmable hot water settings
  • Multiple pulse settings
  • Downloadable programming

Why we love it

User-friendly touch screen display allows for easy switching back and forth between single and double shots
Innovative Cascading Spray Dome (CSD)
Versatile and space-saving design
1 year labour 3 years electronic boards 2 years mechanical parts 1 year other parts & accessories

Please note: Warranty does not include issues caused by misuse or abuse. General maintenance items are excluded from warranty. Only Technicians approved by Zuccarini can perform service under warranty. All service performed by unauthorized Technicians will void the warranty.

Measurements

Height: 25.75 in / 65.4 cm

Width: 11.75 in / 29.8 cm

Depth: 20.375 in / 51.8 cm

Shipping Weight: 26 lbs / 12 kg

Capacity

Tank Capacity: 3.9 G / 14.8 L

8 oz / 236 ml cup/hr: 123

12 oz / 355 ml cup/hr: 82

16 oz / 473 ml cup/hr: 62

20 oz / 591 ml cup/hr: 49

Standard Electrical Configurations

Electrical Connection

Voltage: 208-240 Phase: Single

1 x 3.0 kW

Max Amp Draw: 11.2-12.9

Plug: NEMA 6-15P

Water Specifications

Water Inlet Size: 3/8" Compression Fitting

Minimum Flow Rate: 1.5 gpm

Water Pressure Requirement: 20-75 psig
